Rx10

Robexo Industries Is A Manufacturing International Standard
Various Types Of Construction Machinery Since 2015.

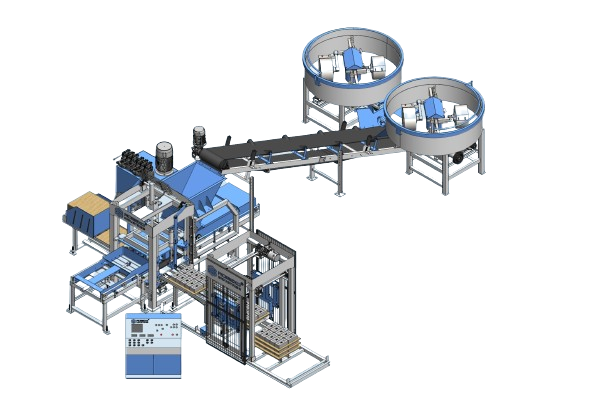

Rx10 Automatic Block Making Machine

Product Specification

Height of Finished Products	50-200 mm
Pallet Size	680 x 570 mm
Production Area	640 x 530 mm
Cycle Time	15-20 S (as per mold)

Vibration Force	60 KN
Overall Dimension	6300 (L) x 3900 (W) x 2500 mm (H)
Total Weight	8.5 T
Motor Frequency	5-60 Hz

Production Capacity

BRICK

230 x 110 x 75 MM
19,000-20,000 NOS.

BRICK

250 x 120 x 75 MM
15,000 16,000 NOS.

i-shape paver

200 x 165 x 60/80 MM
12,500 - 13,500 NOS.

zig-zag paver

225 x 112.5 x 60/80 MM
14,000-15,000 NOS.

solid block

300 x 150 x 200 MM
8,000 - 9,000 NOS.

interlocking block

230.5 x 224 x 160.5 MM
5,500-6,500 NOS.

solid block

400 x 200 x 200 MM
4,000 - 5,000 NOS.

hollow block

400 x 200 x 200 MM
4,000-5,000 NOS.

kerb stone block

300 x 250 x 150 MM
2,500-3,000 NOS.

barfi block

150 x 150 x 60/80 MM
11,500-12,500 NOS.

hexagonal block

200 x 200 x 60/80 MM
11,500 - 12,500 NOS.

rectangular block

200 x 100 x 60/80 MM
17,000-18,000 NOS.

cosmic block

275 x 256 x 60/80 MM
5,500-6,500 NOS

re block

305 x 450 x 200 MM
2,500-3,000 NOS.

NOTE : The capacity data provided above is an approximation and is subject to variations based on machine settings, mix design, type of aggregates, batching plants, handling, and environmental conditions.
