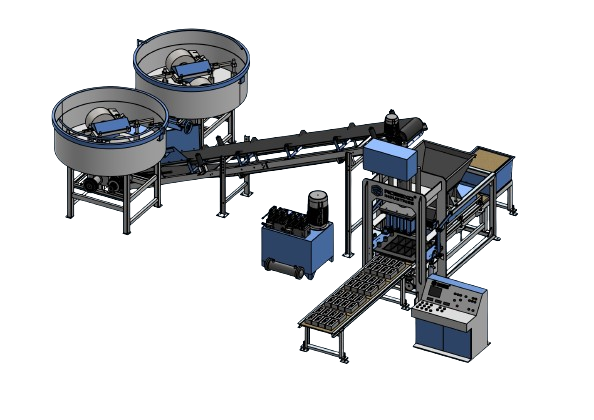

Pallate Feeder
Material Trolley
Main press
Pallet stand
| Height of Finished Products | 50-100 mm |
| Pallet Size | 620X 570X 18 mm |
| Production Area | 590 x 540 mm |
| Cycle Time | 12-15 Sec |
| PRODUCTION PER SHIFT | 15,000 - 16,000 |
| METHOD OF MATERIAL COMPACTION | HYDRO+VIBRO DUAL TECHNOLOGY |
| PRODUCTION CAPACITY | 15,000 - 16,000 |
| Main Pressure | 100 Ton |
| Overall Dimension | 5800 (L) x 1400 (W) x 3100 mm (H) |
| Total Weight | 5.0 T |
| Motor Frequency | 5-60 Hz |
| MATERIAL FEEDING SYSTEM | ROTATIONAL ORBITAL SHAKING MECHANISM |
| POWER REQUIREMENT | 37 HP(27.5KW) |
| LAND REQUIREMENT | 8,000 SQFT |
| Product | Size Mould | Production Per Pallet | Production Capacity/8 Hr. | Concrete Req. Cu.M/Hr |
| Solid Block | 400 x 200 x 150 mm | 6 | 6900 – 8600 | 8.64 |
| Rectangular Paver | 200 x 100 x 60 mm | 14 | 16100 – 20100 | 4.03 |
| Hollow Block | 400 x 200 x 200 mm | 4 | 4600 – 5700 | 8.64 |
| Zig-zag Paver | 225 x 112.5 x 80 mm | 12 | 14200 – 17200 | 4.34 |
| Fly Ash Brick | 230 x 110 x 75 mm | 18 | 20700 – 25900 | 8.5 |
NOTE : The capacity data provided above is an approximation and is subject to variations based on machine settings, mix design, type of aggregates, batching plants, handling, and environmental conditions.
